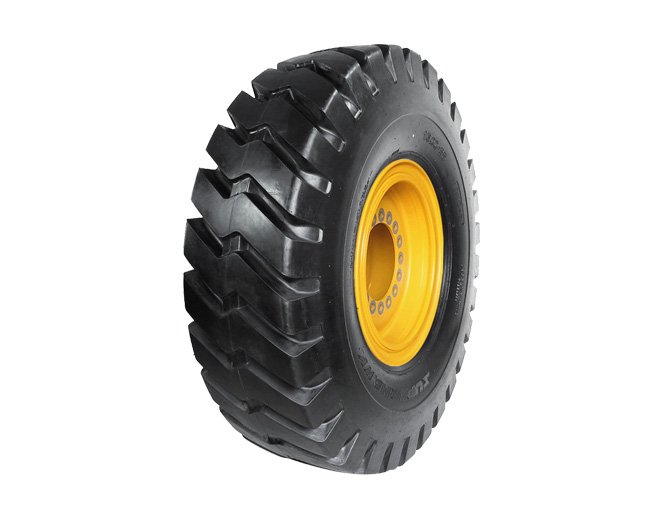

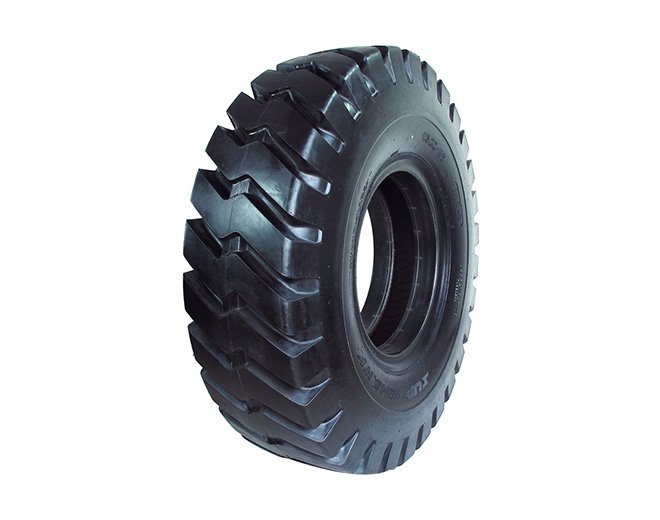

LQ111

Features:
Designed super strength carcass, provide high-load operation protection in all-weather.
Designed wide wall, protected carcass like an iron rampart.Anti-aging formula to provide long wear life.
Extra wide tread profile and big block tread pattern design, provide the excellent anti-puncture and tract performance.
Bias OTR Tyre IND-3

Usage:
Rigid DumpTruck /Aticulated Dump Truck/ Loader/Dozer/ Mechanical Handling Equipment

Suitable Conditions:

bias otr tyre

Share to:

Sizes AndSpecs

Tyre Size	PR	Tread Pattern		Tread Depth (mm)	Rim Size	Tube Type	Inflated Dimensions (mm)		Max Load(KG) Versus Speed		Speed Versus Inflation Pressure(kPa)
		Type	TRA Code				Inflated Dimensions (mm)		Max Load(KG) Versus Speed		Speed Versus Inflation Pressure(kPa)
		Type	TRA Code				Outer Diameter	Section Width	10km/h	50km/h	10km/h	50km/h
16.00-25	24	LQ111	IND-3	37	11.25/2.0	TT/TL	1490	430	10600	6000	650	475
	28	LQ111	IND-3	37	11.25/2.0	TT/TL	1490	430	11500	6700	750	575
	32	LQ111	IND-3	37	11.25/2.0	TT/TL	1490	430	12500	7300	875	650
	36	LQ111	IND-3	37	11.25/2.0	TT/TL	1490	430	13600	77500	975	725
18.00-25	24	LQ111	IND-3	41	13.00/2.5	TT/TL	1615	495	12500	7300	550	425
	28	LQ111	IND-3	41	13.00/2.5	TT/TL	1615	495	13600	8000	650	500
	32	LQ111	IND-3	41	13.00/2.5	TT/TL	1615	495	15000	8750	750	575
	36	LQ111	IND-3	41	13.00/2.5	TT/TL	1615	495	16000	9250	850	625
	40	LQ111	IND-3	41	13.00/2.5	TT/TL	1615	495	17000	9750	950	700
21.00-25	24	LQ111	IND-3	42	15.00/3.0	TT/TL	1750	495	15000	8750	500	375
	28	LQ111	IND-3	42	15.00/3.0	TT/TL	1750	495	16500	9500	575	425
	32	LQ111	IND-3	42	15.00/3.0	TT/TL	1750	495	17500	10300	650	500
	36	LQ111	IND-3	42	15.00/3.0	TT/TL	1750	495	18600	-	725	-
